GROOVE HEIGHTS
precast concrete innovation

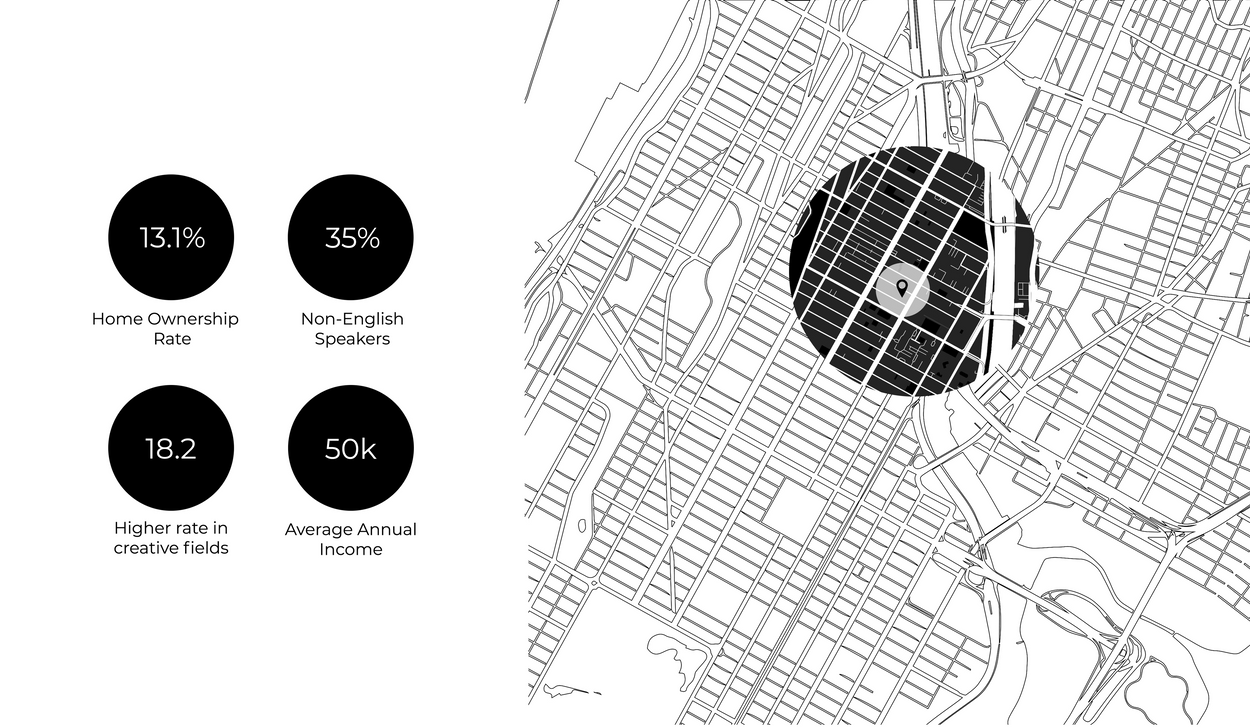

Harlem, NYC
Instructor: Bosuk Hur
Partners: Nick Cheung + Bryce Berthusen
Instructor: Bosuk Hur
Partners: Nick Cheung + Bryce Berthusen
Keywords: Precast Concrete, Acoustics, Housing, Assembly
2021 Wells Concrete Competition Winner
Precast concrete double-tee structural members are extremely efficient in terms of cost and material usage; however they are usually applied in commercial or industrial architecture. Seeing the double-tees potential in residential settings, Groove Height's double-tee system can be implemented in narrow urban infill lots to leverage the long spans and minimal columns of double-tees.
To enhance the experience of inhabiting the double-tee system, an acoustical insert with a three-dimensional tessellated pattern improves the acoustic qualities within the space. These considerations enables Groove Heights to function as an adaptable affordable housing solution while also engaging the community in one of the most diverse and universal languages of all: music.
Double-Tee Innovation

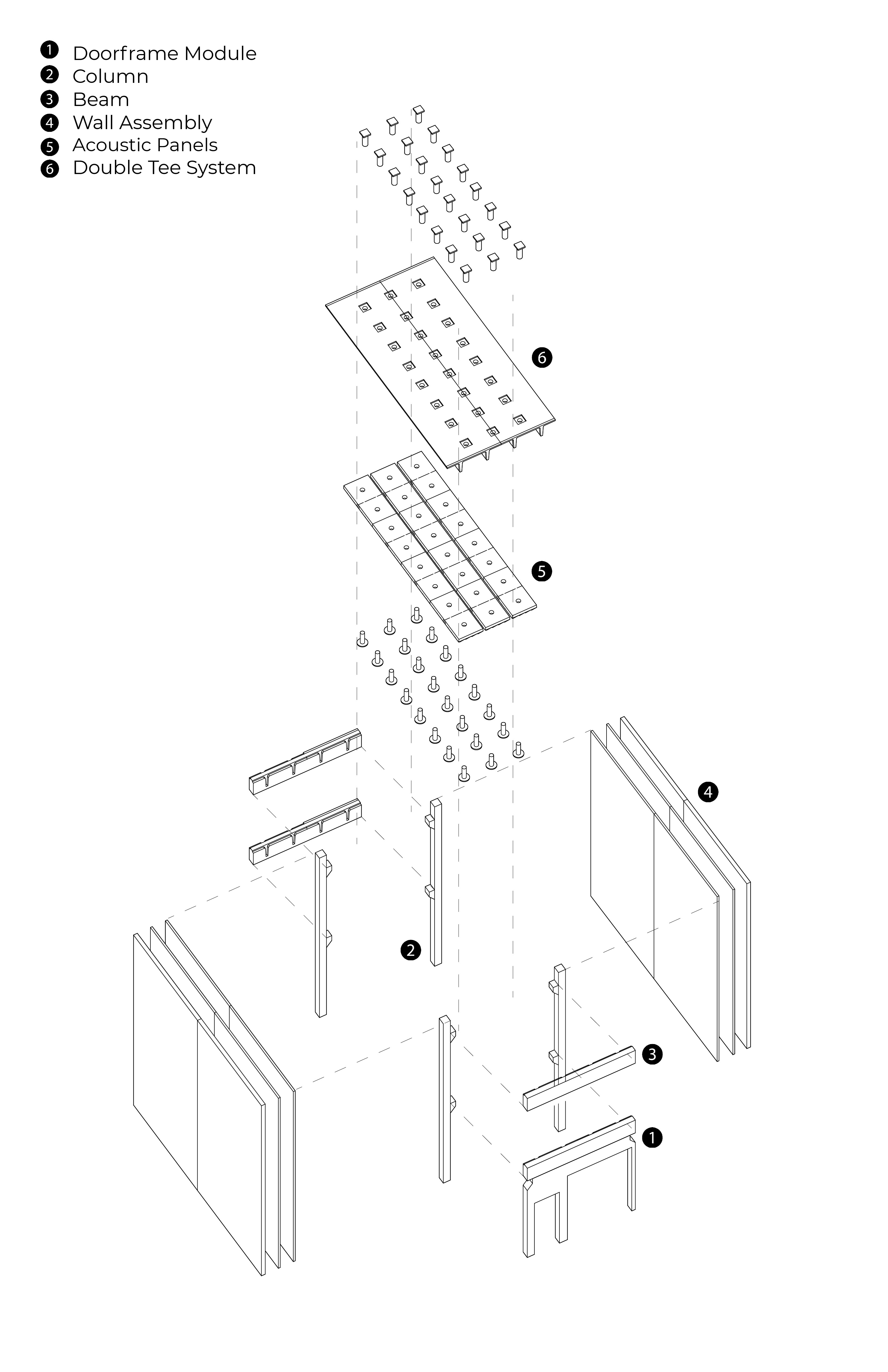

In an effort to apply a precast double-tees to residential architecture, an interchangeable insert was designed to give the structure better acoustic qualities. A screw-and-peg system was created to attach the acoustic panels to the double-tees while creating an air gap between the top of the panel and the bottom of the double-tee, which provides space for electrical and mechanical equipment.
In an effort to apply a precast double-tees to residential architecture, an interchangeable insert was designed to give the structure better acoustic qualities. A screw-and-peg system was created to attach the acoustic panels to the double-tees while creating an air gap between the top of the panel and the bottom of the double-tee, which provides space for electrical and mechanical equipment.
Program
This project is designed to create an ideal space for musicians to dwell. By understanding the amenities that would be helpful for musicians, including an elevator, practice rooms, and a performance area, the design heightens the living and community experience through music. Vertical circulation is centrally located to divide the public and private spaces of each residential unit. The practice room is located near the front of the unit with clear access to the balcony to enable the musician to engage with street activity.
This project is designed to create an ideal space for musicians to dwell. By understanding the amenities that would be helpful for musicians, including an elevator, practice rooms, and a performance area, the design heightens the living and community experience through music. Vertical circulation is centrally located to divide the public and private spaces of each residential unit. The practice room is located near the front of the unit with clear access to the balcony to enable the musician to engage with street activity.
